Release 1.2.0 Highlights

1. Support Grid Use Cases (LPC,LPP, MGCP and MPC)
2. Support Inverter Integration as Hardware in the Loop Test Device
3. EEBUS Device Finder over Network
4. EEBUS New Release Notifier
5. Updated EEBUS EMS Control Logic
6. Release EEBUS Hub Docker Image
7. Added More Examples and Demos

You can download the eebus from https://www.coretech-innovations.com/products/eebushub/download

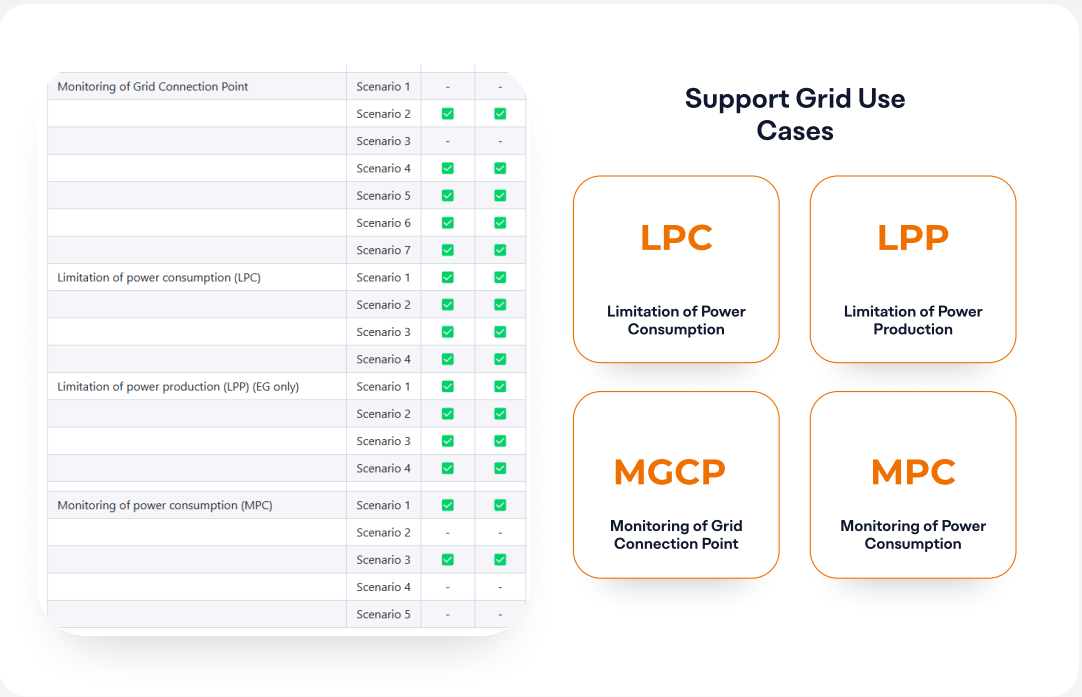

Support Grid Use Cases

Limitation of Power Consumption (LPC)

 Supported Scenarios

• Control active power consumption Limit
• Failsafe Values
• Heartbeat
• Constraints

Support Grid Use Cases

Limitation of Power Consumption (LPC)

Supported LPC Devices

• Energy Guard
• Controllable System

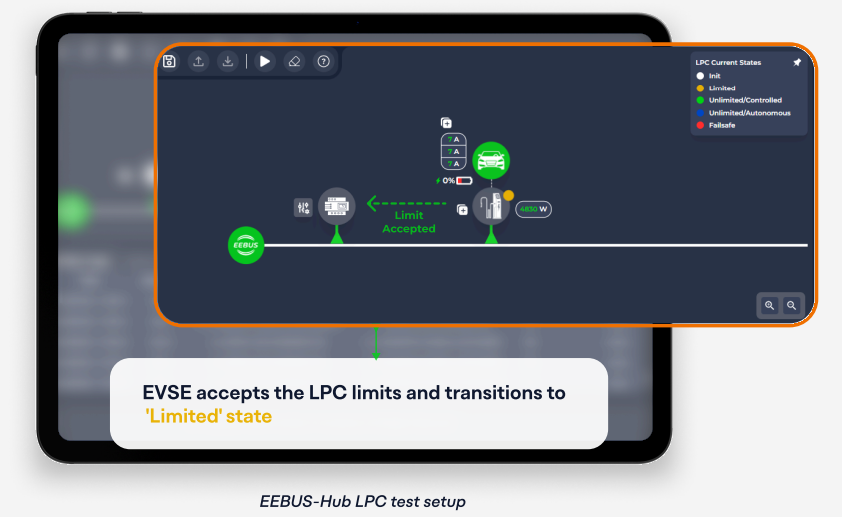

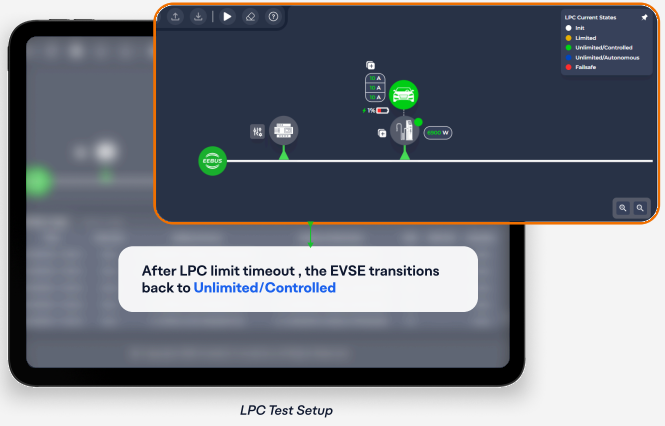

• Showcase of LPC automated testing : https://github.com/Coretech-Innovations/EEBus-Hub/tree/main/examples/Api/LPC

Support Grid Use Cases

Limitation of Power Consumption (LPC)

New APIs Overview

• Several new APIs to interact with the newly supported use cases.
• Grid Use Cases APIs example :

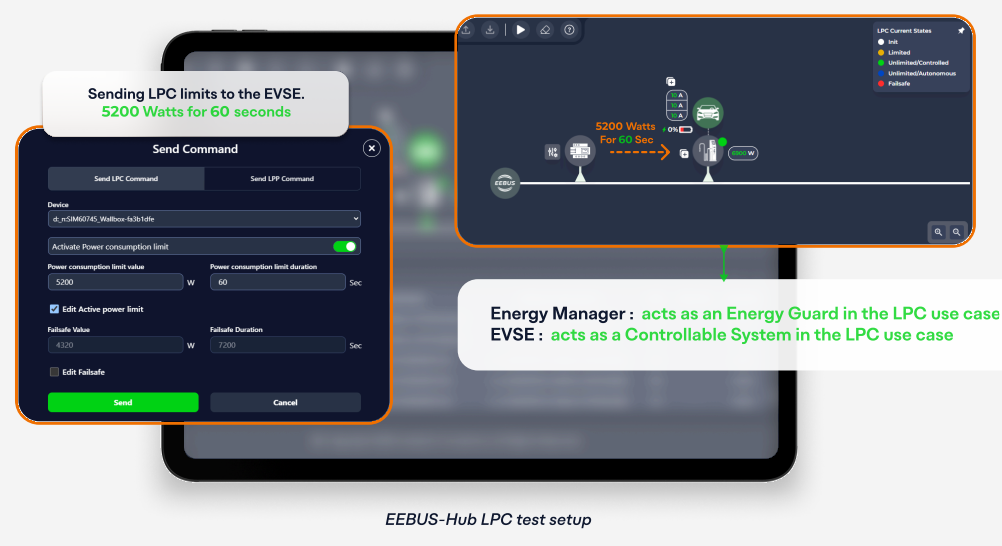

  • Send LPC command
  • Endpoint:"/cem/ActivePowerConsumptionLimit/:deviceAddress"
  • Method:POST
  • Purpose:Trigger the Energy Guard to send a specified limit command to a connected controllable system. The route also provides a response indicating whether the controllable system approves or denies the command.
• 3. All APIs for the EEBus-Hub is documented and could be found Here https://github.com/Coretech-Innovations/EEBus-Hub/blob/main/docs/eebus-hub.yaml.

EEBUS Network Discovery

• Pairing the Device
  • Select an EVSE to enable the simulated EMS to trust the EVSE's SKI code
  • Initiate the secure pairing process by starting the simulation.
• Discovering Devices
  • Automatically categorize devices found on the local network for intuitive scanning.
• Searching Made Simple
  • Use the improved filter tool for efficient identification of specific devices.

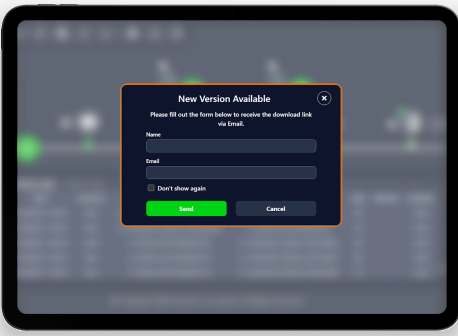

EEBUS New Release Notifier

New Release Notifier: Always stay up to date with notifications for new releases integrated into the EEBUS-Hub.

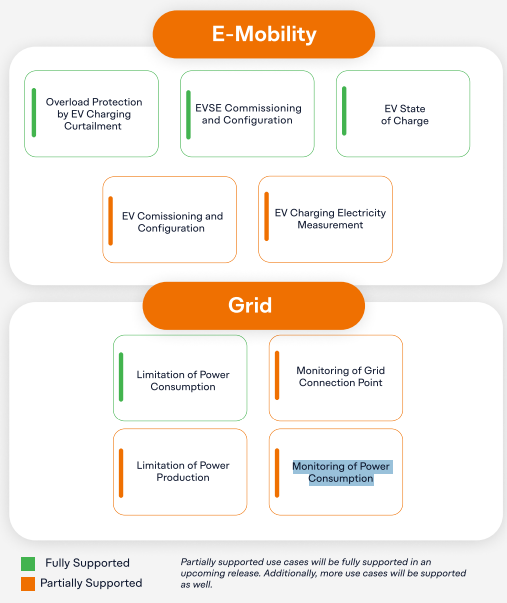

Supported EEBUS Use Cases

• E-Mobility
  • Overload Protection by EV Charging Curtailment
  • EVSE Commissioning and Configuration
  • EV State of Charge
  • EV Comissioning and Configuration
  • EV Charging Electricity Measurement
• Grid
  • Limitation of Power Consumption
  • Monitoring of Grid Connection Point
  • Limitation of Power Production
  • Monitoring of Power Consumption

Planned EEBUS Hub Features
