EEBUS-Hub

Your Ultimate EEBUS HiL/SiL Testing Framework

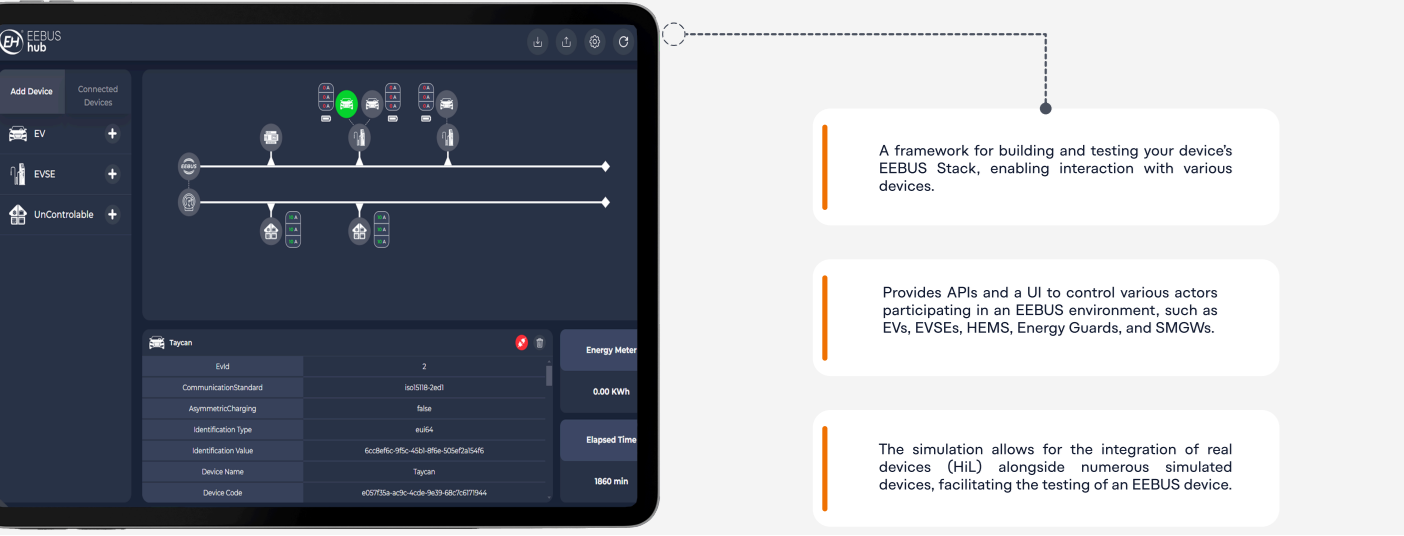

Overview

• A framework for building and testing your device’s EEBUS Stack, enabling interaction with various devices.
• Provides APIs and a UI to control various actors participating in an EEBUS environment, such as EVs, EVSEs, HEMS, Energy Guards, and SMGWs.
• The simulation allows for the integration of real devices (HiL) alongside numerous simulated devices, facilitating the testing of an EEBUS device.

Motive

EEBUS-Hub is intended to be a catalyst to integrating EEBUS stack in your device i.e

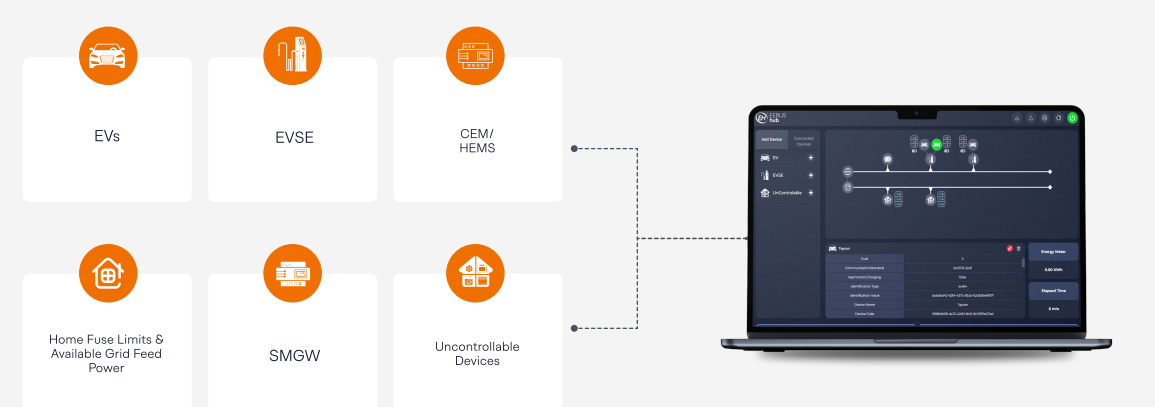

Supported Devices

EEBUS-Hub Supports the following devices:

• EVs
• EVSE
• CEM / HEMS
• Home Fuse Limits & Available Grid Feed Power

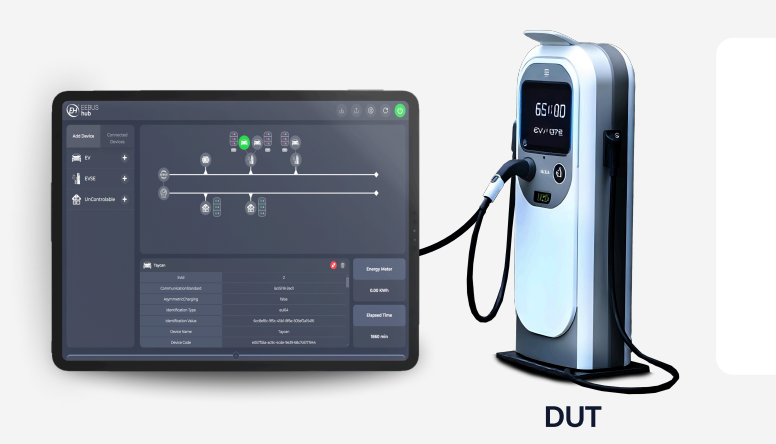

Hardware in the Loop Support

EEBUS-Hub Supports plugging real hardware into the simulation so that you can test your device interaction with other devices over different use cases and scenarios.

E.g. You can either plug your own CEM or EVSE into the simulation

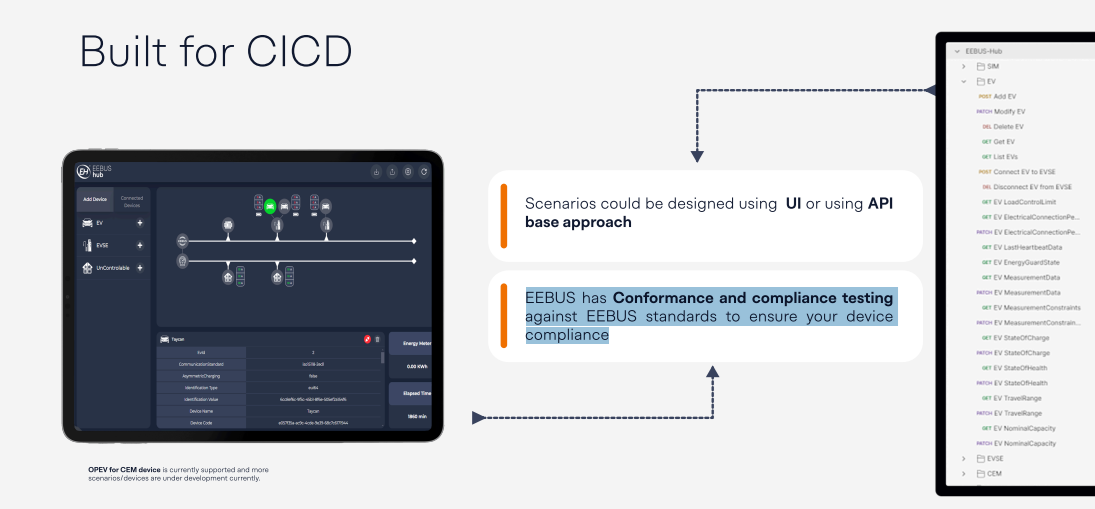

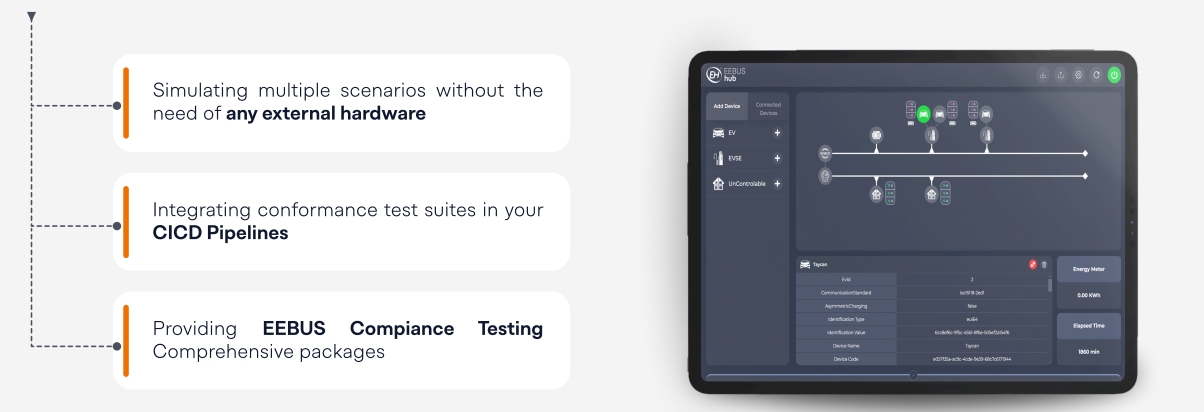

Built for CICD

• Scenarios could be designed using UI or using API base approach
• EEBUS has Conformance and compliance testing against EEBUS standards to ensure your device compliance

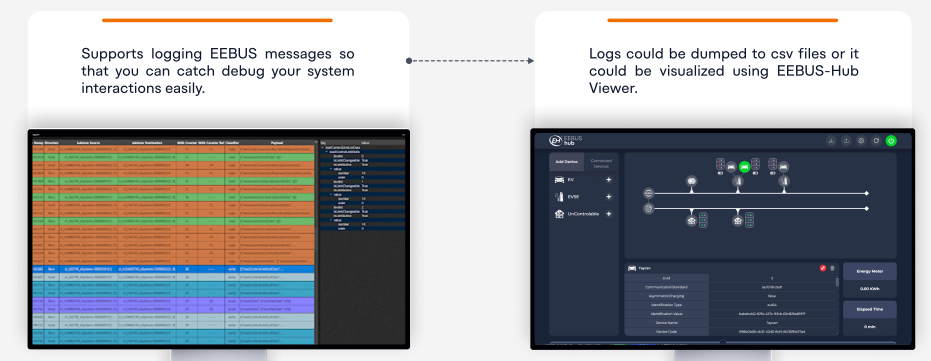

EEBUS Messages Logging

• Supports logging EEBUS messages so that you can catch debug your system interactions easily
• Logs could be dumped to csv files or it could be visualized using EEBUS-Hub Viewer.

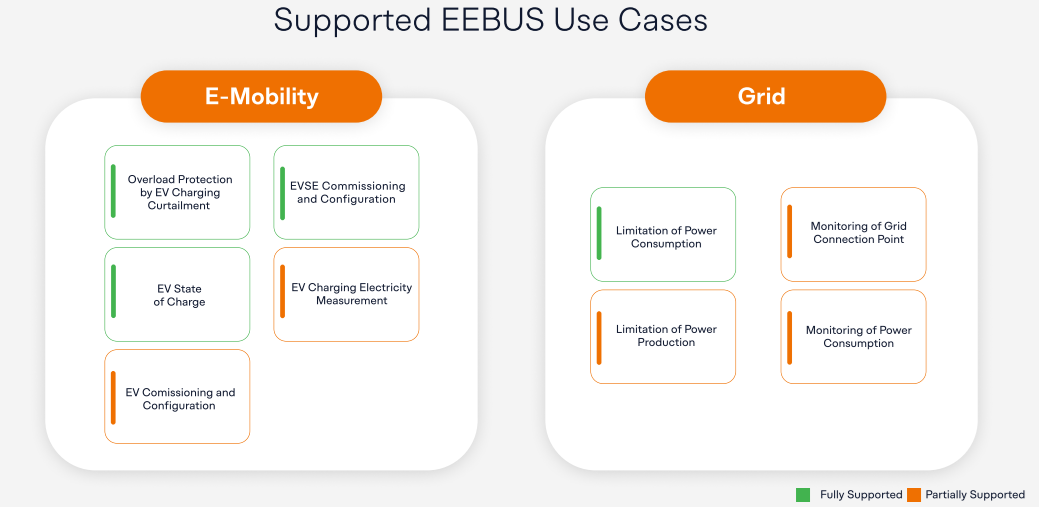

Supported EEBUS Use Cases

1. E-Mobility

• Overload Protection by EV Charging Curtailment
• EV State of Charge
• EV Comissioning and Configuration
• EVSE Commissioning and Configuration
• EV Charging Electricity Measurement

2. Grid

• Limitation of Power Consumption
• Limitation of Power Production
• Monitoring of Grid Connection Point
• Monitoring of Power Consumption

Summary

• SiL: Framework to build a full EEBUS setup without the need of any external hardware
• UI : Additional UI to facilitate simulation scenario design
• Plug & Play : For real hardware insertion in the environment (HiL)
• Configurable : off the shelf electrical devices with EEBUS interface (EV,EVSE,CEM,SMGW,.....)
• Free Licence : Binary is licensed under GPLv2
• Compliance test suite : to ensure a device is compliant with the EEBUS standard
• API : APIs to add, remove, configure or query the simulation environment
• EEBUS : EEBUS messages Logging

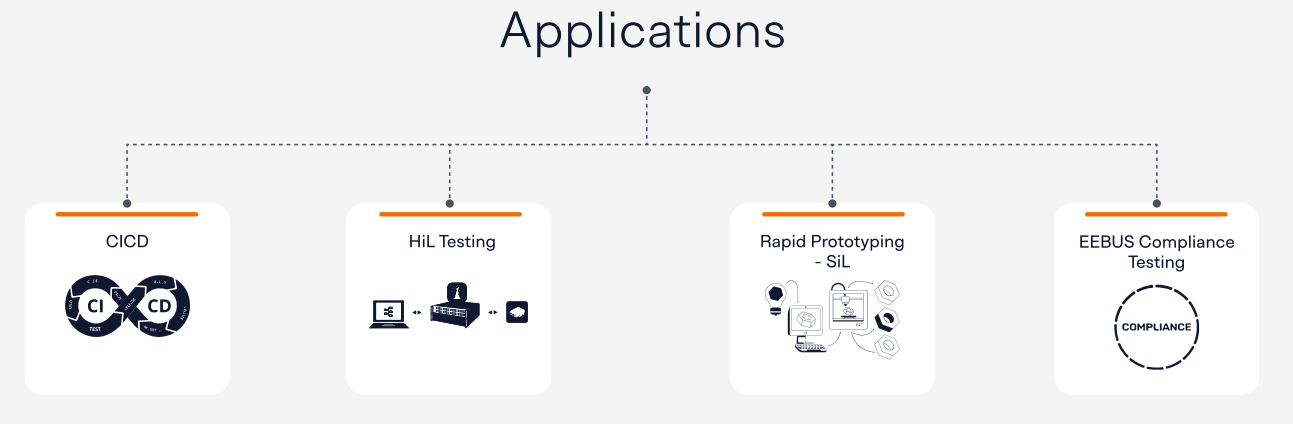

Applications

1. CICD
2. HiL Testing
3. Rapid Prototyping - SiL
4. EEBUS Compliance Testing

APIs

• EEBus-Hub is programming language agnostic as all control is performed via APIs
• In the future an SDK will be supplied for this API over Python and GO, but for now using the API makes the simulator very accessible.

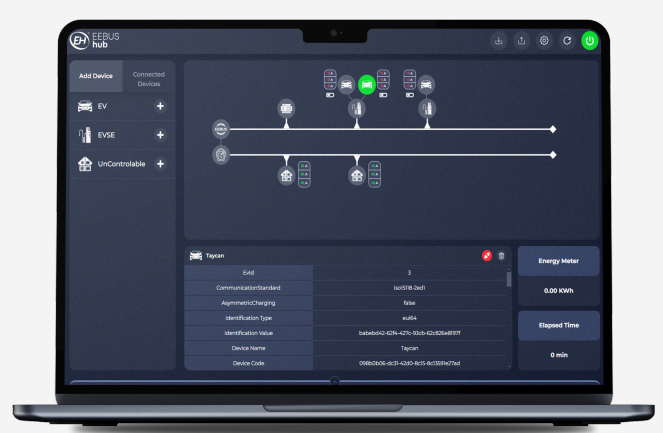

UI Interface
